RF vs. RFID: Decoding the Difference Between RF Tags and RFID Tags

This article demystifies the often-confused technologies of RF (Radio Frequency) and RFID (Radio Frequency Identification), specifically focusing on RF tags and RFID tags.

We’ll explore how each technology works, their key differences, and their applications across various industries. Understanding the difference between RF and RFID is crucial for businesses leveraging these technologies for asset tracking, inventory management, and security. This is a must-read if you’re considering implementing an RFID system or want to understand how radio frequency identification works. It is particularly relevant for retail, logistics, supply chain, and asset management.

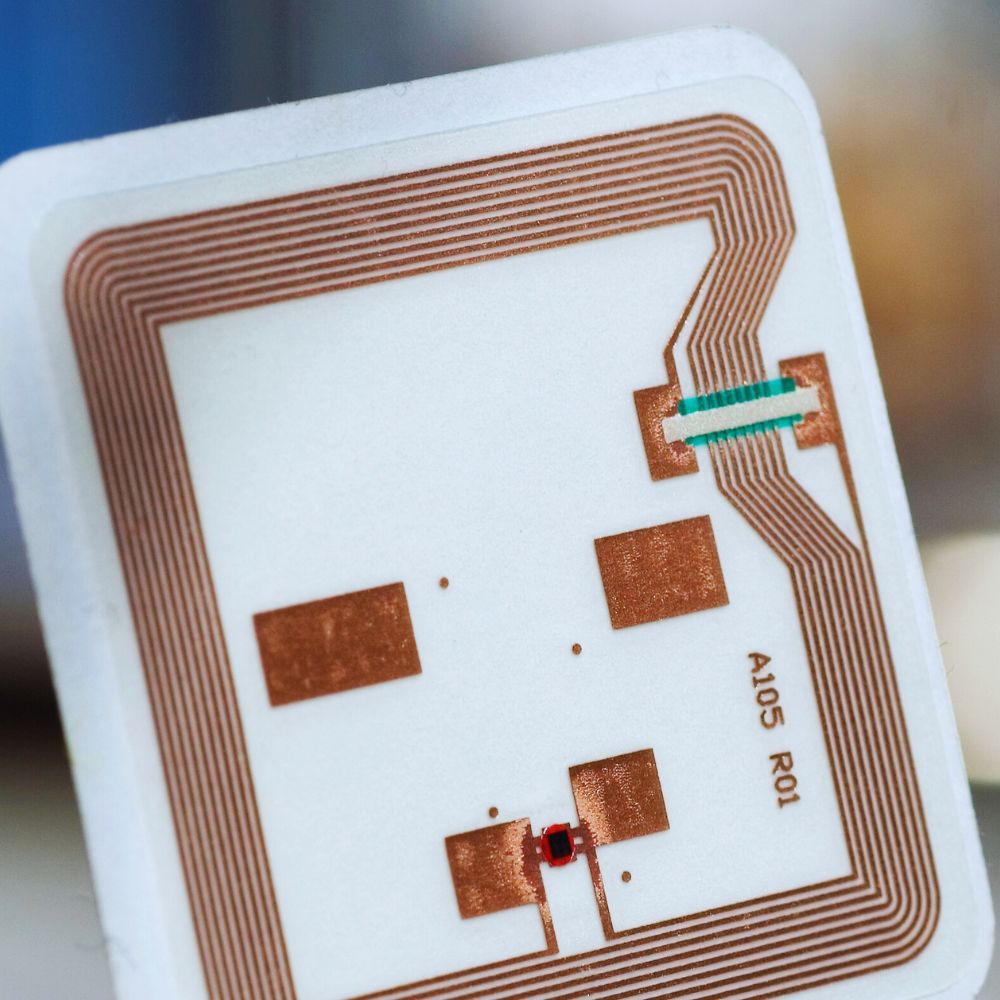

RFID Tags

What is RF Technology and How Does it Work?

RF stands for Radio Frequency. It’s a form of electromagnetic energy that falls within a specific range of frequencies, typically between 3 kHz and 300 GHz. RF technology uses radio waves to transmit and receive data wirelessly. Everyday examples of RF technology include radio broadcasts, television signals, Wi-Fi, and Bluetooth. The basic principle behind RF technology is using a radio transmitter and receiver to send and receive radio waves. The transmitter generates a radio signal modulated to carry data, and the receiver picks up the signal and demodulates it to extract the data.

RF technology uses a transmitter to send out radio waves and a receiver to pick them up. When you tune your radio to a specific station, you adjust the receiver to pick up radio waves at a particular frequency. These radio waves carry information, such as music or voice, that your radio converts into sound. Many things work using the same wireless technology as radio, including digital radio and television. You might have a device using old radio sets you found in your attic. If you did, you’d notice that certain objects would reflect the radio waves to your receiver. Not just anything but certain objects. Not everyone would reflect the radio waves in the same way. This principle is fundamental to how RF systems operate.

What are RF Tags and How are They Used?

RF tags are electronic devices that use radio waves to communicate with a reader. They are commonly used in retail anti-theft systems. These tags typically contain a simple circuit that resonates at a specific frequency. When an RF tag passes through an RF field generated by a reader (often located at store exits), the tag absorbs some of the energy from the radio waves and re-emits it.

If the tag hasn’t been deactivated at the point of sale, the reader detects the re-emitted signal and triggers an alarm. Store personnel can deactivate an RF tag with a special device, often found on a white plastic tag. This prevents the tag from setting off the alarm. They are also used to prevent shoplifting. The tags may be hidden in packaging, such as a shrink-wrap with an RF tag stuck onto it, or embedded in the product itself.

RF tags are often used in retail settings to deter theft. For example, you might see large plastic cases with RF tags built into them. These tags are designed to set off the alarm if someone tries to leave the store without paying for the item. RF tags can be either hard or soft. Hard tags are reusable and are typically removed at the point of sale, while soft tags are disposable and are often deactivated by scanning them over a deactivation pad. The electronic components in the RF label enable it to interact with the RF field. RF tags are generally less expensive than RFID tags but offer limited functionality beyond basic theft deterrence. The big advantage of AM tags is their ability to work when attached to or near metallic products.

What is RFID Technology, and How Does it Differ from RF?

RFID stands for Radio Frequency Identification. It’s a more advanced RF technology that uses radio waves to identify and track tags attached to objects automatically. Unlike basic RF tags that trigger an alarm, RFID tags can store and transmit data, such as a unique identifier, product information, or tracking data. RFID systems consist of RFID tags, readers, and a backend database that stores and processes the data the readers collect.

The key difference between RF and RFID is that RFID is a specific type of RF technology that includes an identification component. While all RFID systems use RF technology, not all RF systems are RFID. Think of RFID as a more sophisticated and data-rich version of RF. RFID tags can signal their presence and provide specific information about the item they are attached to. This capability makes RFID suitable for various applications beyond theft prevention, such as inventory management, asset tracking, and supply chain visibility. This is why you would use RFID for retail, healthcare, or manufacturing inventory management.

How Do RFID Tags Work?

RFID tags communicate with an RFID reader using radio waves. Each tag contains an antenna and a microchip that stores data. When an RFID tag comes within range of an RFID reader, the reader emits radio waves that power the tag (in the case of passive tags) or are received by the tag (in the case of active tags). The tag then transmits the data stored on its chip to the reader via radio waves.

The reader captures the data transmitted by the tag and sends it to a computer system for processing. This system can then use the data for various purposes, such as updating inventory records, tracking an asset’s location, or verifying a product’s authenticity. RFID tags can be read quickly and simultaneously without requiring a direct line of sight, making them highly efficient for tracking and managing large numbers of items. The ability to use radio waves to activate the RFID chip is a key feature of passive RFID systems. Tags typically send and receive data using radio frequency.

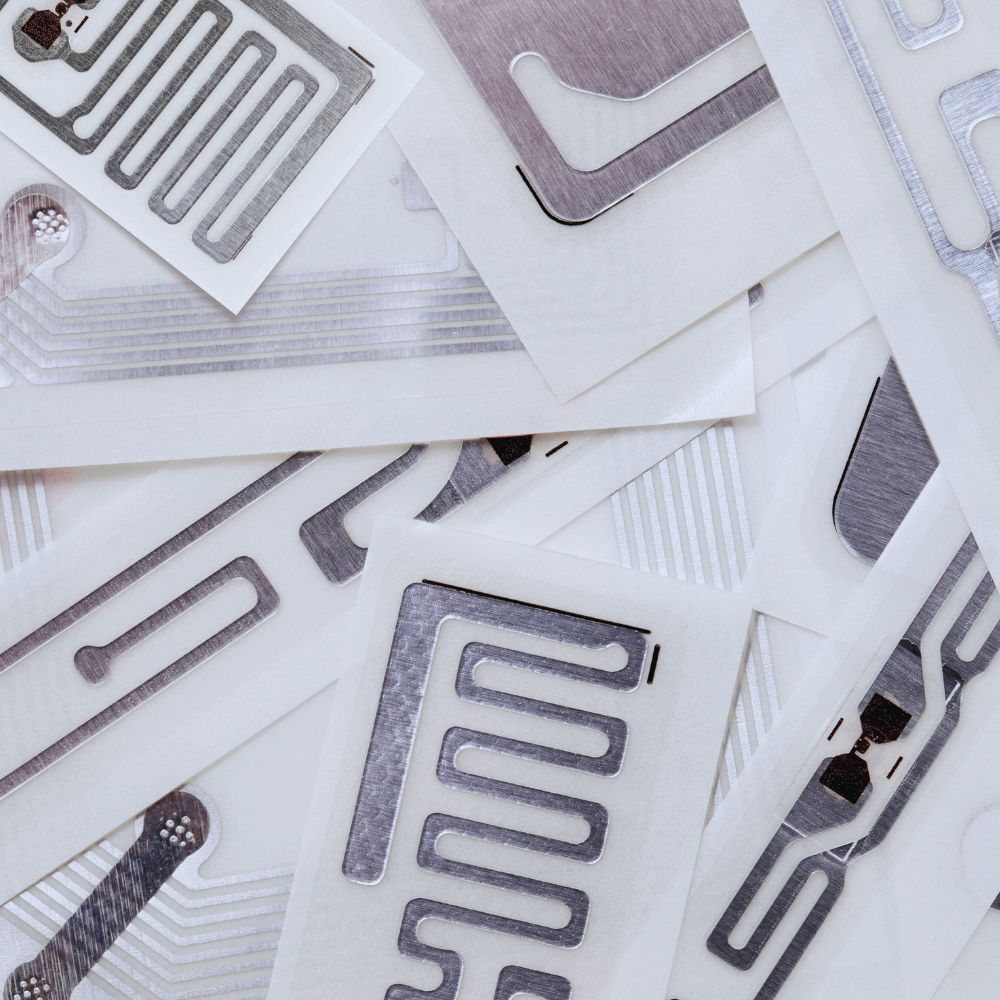

RFID Tags

What are the Different Types of RFID Tags?

RFID tags come in various types, each with its characteristics and use cases. One way to categorize RFID tags is by their power source:

  • Passive RFID tags: These tags do not have their power source and rely on the radio waves emitted by the reader to power their operation. They are typically smaller, cheaper, and have a shorter read range than active tags.

  • Active RFID tags: These tags have an internal power source (usually a battery) that allows them to transmit data over longer distances and operate in more challenging environments. They are typically larger and more expensive than passive tags, also known as active tags.

  • Semi-passive RFID tags (also known as battery-assisted passive tags): These tags have a battery to power the microchip’s circuitry but rely on the reader’s radio waves to transmit data back to the reader. They offer a longer read range than passive tags but are less expensive than active tags.

Another way to categorize RFID tags is by their operating frequency:

  • Low-frequency (LF) RFID: Typically operates at 125-134 kHz, with a short read range and slower data transfer rate. It is commonly used for animal identification and access control.

  • High-frequency (HF) RFID operates at 13.56 MHz and has a read range of up to 1 meter. It is often used for library book tracking, ticketing, and payment systems.

  • Ultra-high-frequency (UHF) RFID: Operates between 860 and 960 MHz, offering a longer read range (up to 12 meters or more) and faster data transfer rates. Widely used for supply chain management, asset tracking, and retail inventory management.

Learn more about different types of RFID tags.

What is the Difference Between Active and Passive RFID Tags?

The primary difference between active and passive RFID tags is their power source and resulting capabilities. Active RFID tags have an internal power source, usually a battery, that allows them to transmit data over longer distances (up to 100 meters or more) and operate in environments where radio waves might be weak or obstructed. They can also initiate communication with a reader, making them suitable for real-time location systems (RTLS) and continuous monitoring applications.

Passive RFID tags, on the other hand, do not have a built-in power source. They rely on the energy from the radio waves emitted by the RFID reader to power their operation. When a passive tag enters the reader’s field, the antenna in the tag picks up the radio waves from the scanner.

The tag then uses the energy in those radio waves to send its unique ID number back to the reader. This process is known as backscattering. Passive tags typically have a shorter read range (up to 12 meters for UHF RFID) and are less expensive than active tags. They are ideal for applications that scan items at close range, such as inventory management and asset tracking. Passive tags typically send data by modulating the reflected signal.

Here is a table summarizing the key differences between active and passive RFID tags:

FeatureActive RFID TagsPassive RFID Tags
Power SourceInternal batteryPowered by reader’s radio waves
Read RangeLong (up to 100 meters or more)Short to medium (up to 12 meters for UHF)
Data TransmissionCan initiate communication with the readerResponds to the reader’s signal
SizeLarger (due to battery)Smaller and thinner
CostHigherLower
LifespanLimited by battery life (typically several years)Longer (no battery to replace)
Use CasesReal-time location systems, continuous monitoringInventory management, asset tracking, access control
Signal StrengthStronger signal, less susceptible to interferenceWeaker signal, more susceptible to interference
Data StorageCan store more dataLimited data storage capacity
WeightHeavierLighter
MaintenanceRequires battery replacementLow to no maintenance
FrequencyTypically operates at 433 MHz or 2.4 GHzLF, HF, or UHF
CommunicationTwo-way communication (tag can initiate and receive data)One-way communication (tag responds to the reader)

What are the Key Applications of RFID Technology?

RFID technology has a wide range of applications across various industries:

  • Retail: Inventory management, theft prevention, smart shelves, automated checkout.

  • Logistics and Supply Chain: Tracking shipments, managing warehouse operations, and improving delivery accuracy. You can learn more about RFID for logistics here.

  • Asset Management: Tracking high-value assets, such as equipment, tools, and vehicles. You can find more information here on what RFID tags are used for.

  • Healthcare: Tracking medical equipment, managing pharmaceuticals, and ensuring patient safety. You can find more information here on how RFID is used in healthcare.

  • Manufacturing: Work-in-progress tracking, tool management, streamlining production processes.

  • Agriculture: Livestock tracking and identification, crop management. Explore how RFID is used in livestock management.

  • Apparel and Textiles: Manage inventory, track garments throughout the supply chain, and enhance customer experience. You can find more information here on how RFID is used in the apparel industry.

These are just a few examples of RFID’s many applications. As the technology continues to evolve and become more affordable, we can expect to see even more innovative uses of RFID in the years to come.

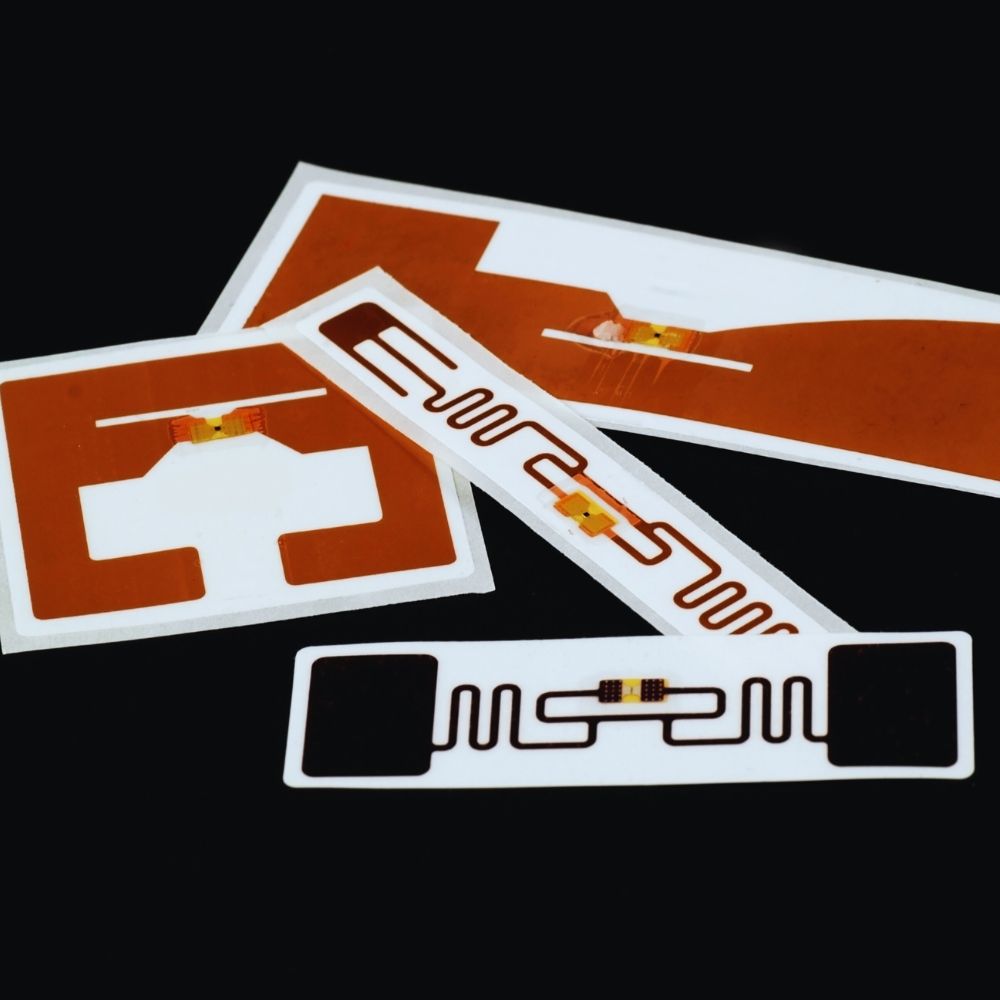

RFID TAGS

How Does UHF RFID Differ from Other RFID Frequencies?

UHF RFID (Ultra-High Frequency) is one of the main frequency bands used in RFID systems, typically operating between 860 and 960 MHz. It differs from other RFID frequencies, such as Low Frequency (LF) and High Frequency (HF), in several key aspects:

  • Read Range: UHF RFID offers the longest read range among the three, with passive UHF tags being readable from up to 12 meters or more and active UHF tags from up to 100 meters or more. LF and HF RFID have much shorter read ranges, typically less than a meter.

  • Data Transfer Rate: UHF RFID has the fastest data transfer rate, simultaneously allowing for quick scanning of multiple tags. This makes it ideal for high-speed data capture applications, such as inventory management and supply chain tracking.

  • Tag Size: UHF RFID antennas can be smaller than LF antennas, allowing for smaller tag form factors. However, HF RFID antennas can be even smaller, making them suitable for item-level tagging where space is limited.

  • Sensitivity to Interference: UHF RFID is more susceptible to interference from liquids and metals than LF and HF RFID. However, specialized UHF tags and careful system design can mitigate these challenges.

  • Cost: UHF RFID tags are generally more expensive than LF tags but comparable in price to HF tags. UHF RFID readers, however, can be more costly than LF and HF readers.

What are the Benefits of Using RFID in Various Industries?

The benefits of RFID vary depending on the specific industry and application, but some common advantages include:

  • Improved Inventory Accuracy: RFID enables real-time inventory tracking, reducing errors and providing accurate stock level and location data.

  • Enhanced Supply Chain Visibility: RFID allows businesses to track goods throughout the supply chain, improving logistics, reducing delays, and enhancing transparency.

  • Increased Operational Efficiency: RFID automates data collection and reduces the need for manual processes, saving time and labor costs.

  • Better Asset Management: RFID helps organizations track and manage high-value assets, reducing losses and improving utilization.

  • Enhanced Security: RFID can improve overall security by improving access control, theft prevention, and product authentication.

  • Improved Customer Experience: In retail, RFID can enable faster checkouts, personalized promotions, and interactive product displays, enhancing the customer experience.

By leveraging RFID’s power, businesses can streamline operations, reduce costs, improve accuracy, and gain a competitive edge in their respective industries.

How to Choose the Right RFID Solution for Your Needs?

Choosing the right RFID solution involves considering several factors:

  1. Identify your specific needs and objectives: What do you want to achieve with RFID? Are you looking to improve inventory accuracy, enhance asset tracking, streamline your supply chain, or enhance security?

  2. Determine the type of items you’ll be tagging: What are the physical characteristics of the items (size, material, packaging)? Are they metallic or liquid-filled, which can affect RFID performance?

  3. Consider the environment: Where will the RFID system be used? Are there any environmental factors that could affect performance, such as extreme temperatures, moisture, or interference from other electronic equipment?

  4. Choose the right frequency: Based on your required read range, data transfer rate, and tag size, select the appropriate RFID frequency (LF, HF, or UHF).

  5. Select the appropriate tags and readers: Choose tags and readers that are compatible with your chosen frequency and suitable for your specific application and environment. Consider factors such as tag form factor, read range, durability, and cost.

  6. Evaluate software and integration: Ensure that the RFID system includes software that can effectively manage and process the data collected by the readers. Consider how the RFID system will integrate with your existing IT infrastructure, such as inventory management systems, ERP systems, or security systems.

  7. Consider the total cost of ownership: Evaluate the overall cost of the RFID solution, including the price of tags, readers, software, installation, and ongoing maintenance.

  8. Work with an experienced RFID provider: Partnering with a knowledgeable and experienced RFID solution provider can help you navigate these choices and ensure a successful implementation.

FAQs

  1. What is the main difference between RF and RFID?

    RF (Radio Frequency) is a general term for the use of radio waves to transmit and receive data wirelessly. RFID (Radio Frequency Identification) is a specific type of RF technology that uses radio waves to identify and track tags attached to objects automatically.

  2. How do RF tags work?

    RF tags typically contain a simple circuit that resonates at a specific frequency. When an RF tag passes through a reader’s RF field, it absorbs some of the energy and re-emits it. The reader detects this re-emitted signal and triggers an alarm if the tag hasn’t been deactivated.

  3. What are the different types of RFID tags?

    RFID tags can be categorized by their power source (passive, active, or semi-passive) and operating frequency (Low Frequency, High Frequency, or Ultra-High Frequency).

  4. What is the difference between active and passive RFID tags?

    Active RFID tags have their internal power source, allowing for longer read ranges and the ability to initiate communication with a reader. Passive RFID tags rely on the radio waves emitted by the reader for power and typically have shorter read ranges.

  5. What are some common applications of RFID technology?

    RFID is used in various industries for inventory management, asset tracking, supply chain visibility, theft prevention, access control, and more.

  6. How does UHF RFID differ from LF and HF RFID?

    UHF RFID offers the longest read range and fastest data transfer rate but is more susceptible to interference from liquids and metals than LF and HF RFID.

Key Takeaways

  • RF (Radio Frequency) is a broad term for radio waves in wireless communication. At the same time, RFID (Radio Frequency Identification) is a specific type of RF technology used for identifying and tracking objects.

  • RF tags are commonly used in retail anti-theft systems and work by resonating at a specific frequency when exposed to an RF field, triggering an alarm if not deactivated.

  • RFID tags contain a microchip and an antenna and use radio waves to communicate with an RFID reader, transmitting data such as a unique identifier.

  • There are different types of RFID tags, including passive, active, and semi-passive, as well as LF, HF, and UHF, each with its own characteristics and use cases.

  • Active RFID tags have an internal power source, offering longer read ranges and more capabilities than passive RFID tags, which rely on the reader’s radio waves for power.

  • RFID technology has numerous applications across various industries, including retail, logistics, asset management, healthcare, manufacturing, agriculture, and apparel.

  • UHF RFID differs from LF and HF RFID in terms of read range, data transfer rate, tag size, sensitivity to interference, and cost.

  • The benefits of RFID include improved inventory accuracy, enhanced supply chain visibility, increased operational efficiency, better asset management, enhanced security, and an improved customer experience.

  • Choosing the right RFID solution involves identifying your needs, determining the type of items to be tagged, considering the environment, selecting the appropriate frequency, choosing compatible tags and readers, evaluating software and integration, considering the total cost of ownership, and working with an experienced provider.

By understanding the differences between RF and RFID, as well as the various types of RFID tags and their applications, businesses can make informed decisions about implementing these technologies to optimize their operations. Whether you’re in retail, logistics, healthcare, or any other industry that can benefit from improved tracking and identification capabilities, RFID offers a powerful and versatile solution.

If you’re considering an RFID implementation, I encourage you to explore the options available and tailor the technology to your needs. Your proactive approach to adopting these technologies will undoubtedly contribute to a more efficient and successful future for your business. Using my services and products can enhance your operations and achieve greater success. Don’t hesitate to contact me for more information and personalized RFID solutions.
