Колко далеч може да се прочете RFID етикет

Съдържание

Unlocking Efficiency: Understanding the Read Range of RFID Tags for Optimal Performance

Тази статия се задълбочава в критичната концепция за обхвата на четене в RFID технологията, изследвайки колко далеч може да бъде прочетен RFID етикет.

Understanding the read range of RFID tags is essential for businesses seeking to leverage the power of радиочестотна идентификация for various applications, from inventory management to asset tracking. We’ll examine the factors that influence the read range of an RFID tag, включително честота, тип етикет, and environmental conditions, and discuss how to optimize performance for specific use cases. Whether you’re in retail, logistics, healthcare, or any industry considering passive RFID solutions, this guide will provide valuable insights into maximizing the effectiveness of your RFID система. This article is a must-read if you want to understand the range of an RFID tag and how to apply this knowledge to your business.

RFID етикет

What is RFID Technology, and How Does it Relate to Read Range?

Radio Frequency Identification (RFID) is a technology that uses radio waves to identify and track objects wirelessly. An RFID система typically consists of two main components: RFID етикети и ан RFID четец. RFID етикети are small electronic devices that contain an RFID чип и ан антена. The chip stores information, such as a unique identifier or product details, while the антена позволява на етикет да общува с RFID четец.

The диапазон на четене на ан RFID етикет refers to the maximum distance at which the етикет can be successfully detected and read by an RFID четец. This is a crucial factor in determining the suitability of RFID технология for specific applications. For instance, a short диапазон на четене might be sufficient for access control using an RFID card, while a longer диапазон на четене is necessary for tracking inventory across a large warehouse.

How Does Frequency Affect the Read Range of RFID Tags?

The operating честота на ан RFID система is one of the primary factors influencing its диапазон на четене. RFID системи operate in several честота bands, each with its characteristics and trade-offs:

  • Ниска честота (LF): LF RFID systems typically operate between 30 and 300 kHz. They have a short диапазон на четене, usually a few centimeters, but are less susceptible to interference from liquids and metals. Low-frequency tags are often used in animal tracking and access control applications.

  • Висока честота (HF): HF RFID systems operate at 13.56 MHz. They offer a slightly longer диапазон на четене than LF systems, typically up to 1 meter. High-frequency tags са често срещани used in smart cards, library book tracking, and product authentication.

  • Ултра-висока честота (UHF): UHF RFID systems operate between 300 MHz and 3 GHz. They provide the longest диапазон на четене among passive RFID systems, reaching up to 12 meters or more under optimal conditions. UHF тагове are widely used in retail, logistics, and supply chain management for опис and asset tracking. The диапазон на четене can vary depending on whether the tags are indoors or outdoors.

In general, the higher the честота, the longer the диапазон на четене. обаче higher-frequency systems are also more susceptible to interference from materials like metal and water.

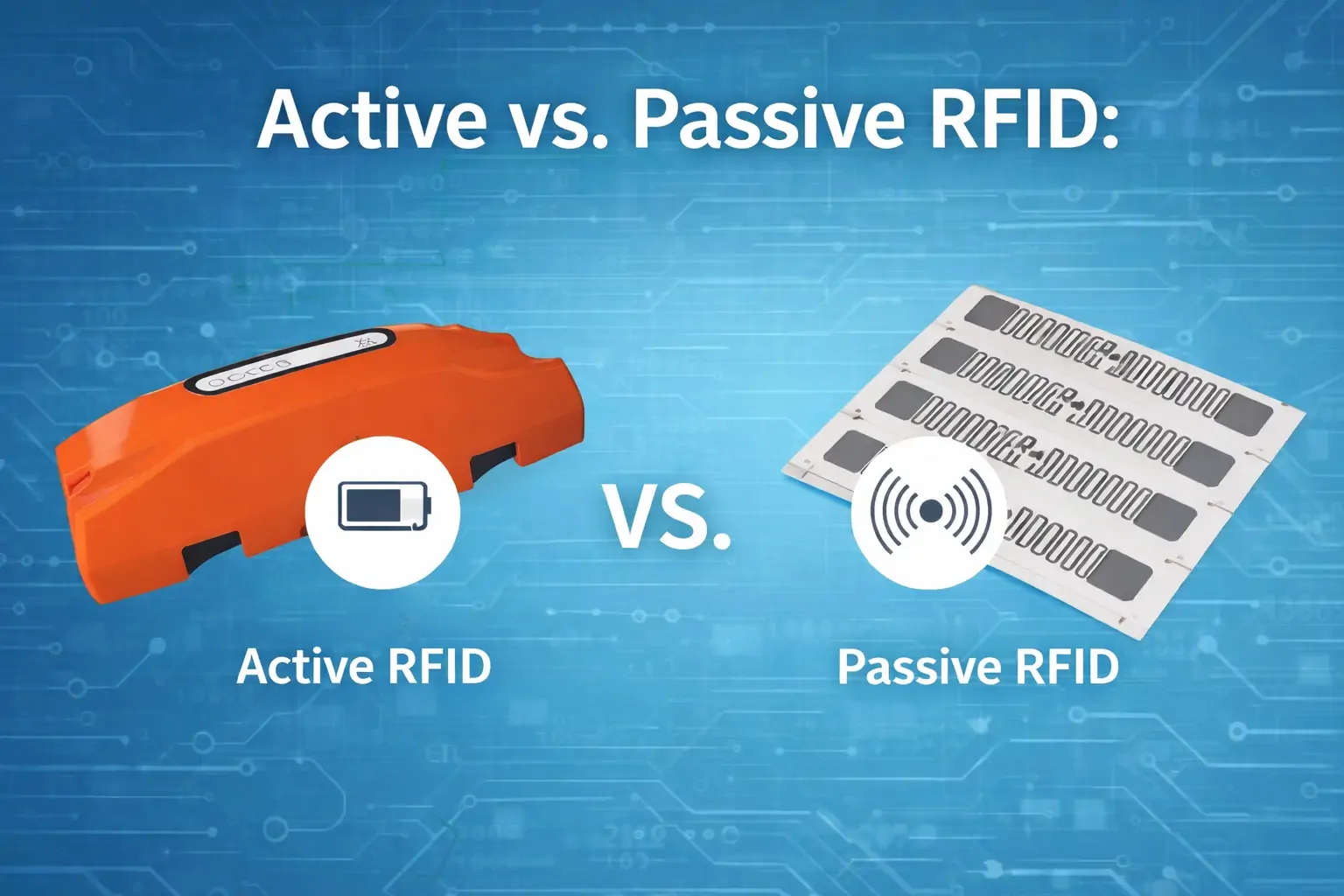

What Role Does Tag Type Play in Determining Read Range?

The тип етикет used in an RFID система significantly impacts its диапазон на четене. There are three main types of RFID етикети:

  • Пасивни RFID тагове: Пасивни тагове do not have their power source. Instead, they rely on the радиочестота energy transmitted by the RFID четец to power their RFID чип and transmit data back to the reader. The диапазон на четене на пасивни RFID етикети depends on the operation frequency, the tag antenna size, and the reader’s power. Пасивна RFID is commonly deployed in various industries due to its cost-effectiveness.

  • Активни RFID етикети: Активни етикети have their built-in power source, usually a battery. This allows them to transmit signals over much longer distances than пасивни тагове. Активни RFID тагове can have прочетени диапазони на 100 meters or more. However, they are more expensive and have a limited lifespan due to battery life.

  • Battery-Assisted Passive (BAP) Tags: BAP tags are a hybrid between active and passive tags. They have a battery to power the RFID чип but rely on the reader’s signal for communication. This allows for a longer диапазон на четене than purely пасивни тагове but not as long as активни тагове.

The тип етикет you choose will depend on your specific application requirements, including the desired диапазон на четене, cost considerations, and environmental factors. Active tags can reach impressive distances if you need a long read range.

How Do Antennas and Readers Impact RFID Read Range?

The RFID четец и неговото антена play a crucial role in determining the диапазон на четене на ан RFID система. The reader’s power directly affects the strength of the electromagnetic field it generates, which determines how far away a tag can be read. A more powerful reader can energize пасивни тагове from a greater distance, increasing the диапазон на четене.

The дизайн на антената also significantly impacts the диапазон на четене. Антени focus the reader’s energy in specific directions, creating a “red zone” where етикети can be detected. The antenna’s size, shape, and gain influence the size and shape of this red zone. For example, a directional антена can focus the reader’s energy in a specific direction, extending the диапазон на четене. The connection between the reader and the tag is vital for optimal performance.

RFID етикет

What Environmental Factors Affect RFID Read Range?

Several environmental factors can influence the диапазон на четене на ан RFID система:

  • Metal: Metal objects can interfere with RFID signals, especially at higher frequencies like UHF. Metal can reflect, absorb, or detune the radio waves, reducing the диапазон на четене or creating “dead spots” where етикети cannot be read. When deploying RFID in environments with a lot of metal, specialized етикети, and careful антена placement are often required.

  • Liquids: Water and other liquids can absorb радио честота energy, reducing the прочети диапазон на RFID systems, particularly at UHF frequencies. This can be a challenge in liquids applications, such as beverage tracking or laundry management.

  • смущения: Other electronic devices emitting radio waves can interfere with RFID signals, reducing the read range or causing errors. This is known as electromagnetic interference (EMI). Proper shielding and filtering techniques can help mitigate interference.

  • Ориентация на етикета: The orientation of the RFID етикет relative to the reader’s антена can affect the диапазон на четене. Пасивни тагове generally have an optimal orientation for reading, and the диапазон на четене may be reduced if the етикет is not aligned correctly.

  • Reader and Tag Density: Having many RFID четци и етикети nearby can cause interference. The етикет density can create signal collisions.

Understanding these environmental factors is essential for designing and deploying effective RFID системи. Careful planning and testing are often required to optimize на диапазон на четене in challenging environments.

What are the Read Ranges of Different RFID Tag Types (LF, HF, UHF)?

Here’s a table summarizing the typical прочетени диапазони of different RFID етикет types:

RFID Tag TypeЧестотаTypical Read RangeОбщи приложения
Ниска честота (LF)30-300 kHzUp to 10 cmAnimal tracking, access control, key fobs
Висока честота (HF)13,56 MHzUp to 1 meterRFID card access, library book tracking, product authentication, NFC applications
Ултра-висока честота (UHF)300 MHz – 3 GHzUp to 12 meters (passive), 100+ meters (active)Retail inventory management, supply chain logistics, asset tracking

LF тагове have the shortest диапазон на четене, typically just a few centimeters. They are often embedded in small, rugged form factors and are less susceptible to interference from liquids and metals.

HF тагове offer a moderate диапазон на четене of up to 1 meter. They are commonly used in applications that require proximity reading, such as access control using RFID карти, library book tracking, and product authentication. NFC technology, a subset of HF RFID, has an even shorter диапазон на четене of a few centimeters. High-frequency tags strike a balance between read distance and sensitivity.

UHF тагове provide the longest диапазон на четене among passive RFID системи. UHF RFID tags can be read from several meters away, making them ideal for inventory management, supply chain logistics, and asset tracking applications. With their built-in power source, active UHF tags can achieve even longer прочетени диапазони exceeding 100 meters in some cases.

How Does NFC Technology Compare to RFID in Terms of Read Range?

Near Field Communication (NFC) is a specialized subset of HF RFID technology that operates at 13.56 MHz. NFC is designed for short-range, secure communication between devices, typically within a few centimeters. The диапазон на четене на NFC is intentionally limited to ensure secure and intentional interactions.

Compared to other types of RFID, NFC has a much shorter диапазон на четене. While HF RFID can have a диапазон на четене of up to 1 meter, NFC is typically limited to 4-10 centimeters. This short диапазон на четене enhances the security of NFC transactions, as it requires the devices to be in very close proximity for communication to occur. For instance, the read range of an RFID used in retail can be much broader.

NFC is commonly used in applications like mobile payments (e.g., Apple Pay, Google Pay), data exchange between smartphones, and access control. Its short диапазон на четене makes it ideal for these use cases, where security and intentional interaction are paramount.

RFID етикет

How Can You Optimize RFID Read Range for Specific Applications?

Optimizing the диапазон на четене на ан RFID система изисква внимателно разглеждане на няколко фактора:

  1. Choose the Right Frequency: Select the appropriate честота band (LF, HF, or UHF) based on your application’s диапазон на четене requirements and environmental conditions.

  2. Select the Appropriate Tag Type: Choose between passive, active, or BAP етикети depending on the desired диапазон на четене, cost constraints, and power availability. When considering the тип етикет, also think about the size of the tag.

  3. Optimize Antenna Design and Placement: Използвайте антени with the appropriate gain and directionality for your application. Carefully position the антени to maximize coverage and minimize interference. The tag antenna plays a vital role in achieving the desired range.

  4. Adjust Reader Power: Fine-tune the reader’s power to achieve the desired диапазон на четене without causing interference or exceeding regulatory limits. Various factors can influence this setting.

  5. Minimize Interference: Identify and mitigate sources of interference, such as metal objects, liquids, and other electronic devices.

  6. Ориентация на етикета: Ensure that етикети are oriented correctly relative to the reader’s антена for optimal диапазон на четене.

  7. Environmental Testing: Conduct thorough testing in the operating environment to fine-tune the system and ensure reliable performance.

By carefully considering these factors, you can optimize на диапазон на четене от твоето RFID система and achieve the best possible performance for your specific application.

What are Some Practical Applications of RFID Based on Read Range Capabilities?

The диапазон на четене на ан RFID система directly influences its suitability for different applications. Here are some examples:

  • Short-Range Applications (LF, NFC):

    • Контрол на достъпа: RFID карти and key fobs used for building or room access typically use LF or NFC technology, as the short диапазон на четене ensures that only authorized individuals nearby can gain entry.

    • Animal Tracking: LF RFID етикети are often implanted in animals for identification and tracking, as the short диапазон на четене is sufficient for scanning individual animals.

    • Contactless Payments: NFC technology enables secure, short-range transactions for mobile payments using smartphones or contactless cards.

  • Mid-Range Applications (HF):

    • Library Book Tracking: HF RFID тагове are commonly used in libraries to track books and other media. The moderate диапазон на четене allows a quick inventory of items at checkout and return.

    • Product Authentication: HF RFID can be used to verify the authenticity of products, such as pharmaceuticals or luxury goods, by embedding етикети that can be read at close range.

  • Long-Range Applications (UHF):

    • Управление на инвентара: UHF RFID is widely used in retail and warehousing for управление на запасите. The long диапазон на четене allows quick and efficient scanning of many tagged items. Visit RFID for retail for more details.

    • Supply Chain Logistics: UHF RFID enables real-time tracking of goods moving through the supply chain, from manufacturing to distribution to retail. Explore how RFID for supply chain management can benefit your operations.

    • Проследяване на активи: UHF RFID is used to track valuable assets, such as equipment, tools, and vehicles, across large areas. Learn more about RFID for asset management.

    • Toll Collection: UHF RFID тагове are used in electronic toll collection systems, allowing vehicles to be automatically charged as they pass through toll booths at highway speeds.

Where Can I Find More Information About RFID Tags and Product Categories?

If you’re interested in learning more about RFID етикети and exploring different product categories, here are some helpful resources:

  • Custom RFID Tags: This website provides extensive information about various types of RFID етикети, включително UHF RFID тагове, custom RFID tags, and other kinds. You can also explore RFID решения for different industries and applications.

  • RFID журнал is a leading online resource for news, articles, and insights about RFID технология and its applications in various industries.

  • AIM Global: The Association for Automatic Identification and Mobility (AIM) is a global industry association that provides resources and education on RFID and other automatic identification technologies.

  • GS1: GS1 is a not-for-profit organization that develops and maintains global standards for RFID and other supply chain technologies.

By exploring these resources, you can deepen your understanding of RFID технология and find the right solutions for your needs. For instance, if you are looking for NXP products, you can look for an NXP RFID tag supplier.

Често задавани въпроси

What is the typical read range of a passive UHF RFID tag?

Типичното диапазон на четене of a passive UHF RFID tag is between 3 and 12 meters, depending on factors such as the етикете антена design, the power of the RFID четеци условията на околната среда. UHF тагове предлагат най-дълго диапазон на четене among passive RFID системи.

Can metal interfere with RFID signals?

Metal can interfere with RFID signals, especially at higher frequencies like UHF. Metal can reflect, absorb, or detune the radio waves, reducing the диапазон на четене or creating “dead spots” where етикети cannot be read.

How does NFC differ from RFID in terms of reading range?

NFC is a specialized subset of HF RFID with a much shorter диапазон на четене than other types of RFID. NFC is designed for secure, close-proximity communication, typically within a 4-10 centimeters range.

Can I use my smartphone to read RFID tags?

Most modern smartphones have built-in NFC capabilities, which allow them to read NFC тагове and some HF RFID тагове. However, smartphones typically cannot read LF или UHF RFID тагове, which require specialized RFID четци.

What is an active RFID tag, and how far can it be read?

Ан active RFID tag has its built-in power source, usually a battery, which allows it to transmit signals over much longer distances than passive tags. Активни RFID тагове can have прочетени диапазони на 100 meters or more.

How can I improve the read range of my RFID system?

You can improve the диапазон на четене от твоето RFID система by choosing the right честота и тип етикет, optimizing антена design and placement, adjusting reader power, minimizing interference, and ensuring proper етикет orientation.

Ключови изводи

  • The диапазон на четене на ан RFID етикет is the maximum distance at which it can be successfully detected and read by an RFID четец.

  • Честота is a primary factor affecting диапазон на четене, with higher frequencies generally offering longer ranges but greater susceptibility to interference.

  • Tag type plays a significant role, with активни тагове providing much longer прочетени диапазони отколкото пасивни тагове.

  • Antenna design, reader power, and environmental factors like metal and liquids can significantly impact диапазон на четене.

  • LF RFID has a very short диапазон на четене (centimeters), HF RFID offers a moderate range (up to 1 meter), and UHF RFID provides the longest range for passive етикети (up to 12 meters or more).

  • NFC е подмножество на HF RFID with a very short диапазон на четене (4-10 centimeters), designed for secure, close proximity communication.

  • Optimizing диапазон на четене involves choosing the right честота и тип етикет, optimizing антена placement, adjusting reader power, and minimizing interference.

  • Обхват на четене requirements vary depending on the application, such as access control (short-range), управление на запасите (long-range), or toll collection (long-range).

By understanding the factors that influence the диапазон на четене на RFID етикети and how to optimize system performance, businesses can effectively leverage the power of RFID технология for a wide range of applications. Whether you need to track assets across a vast warehouse, manage inventory in a retail store, or implement a secure access control system, selecting the right RFID solution with the appropriate диапазон на четене is crucial. Contact us today to learn more about how our customized RFID етикети and solutions can help you achieve your business goals.
